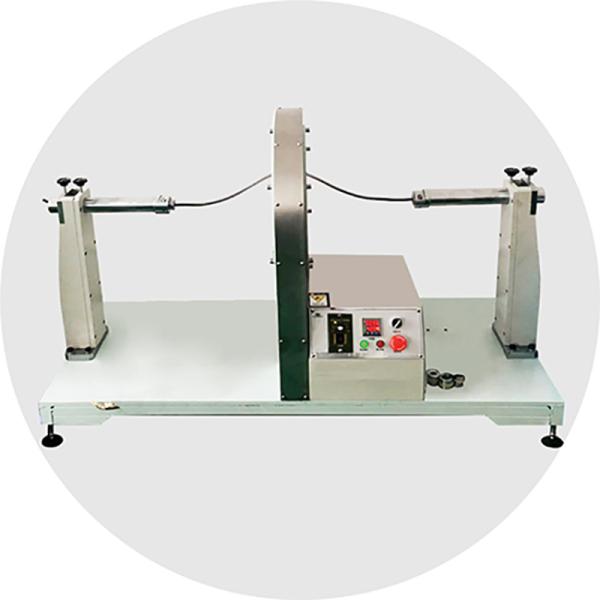

HOOHA High Precision Wire Testing Equipment ZY6315 Bending Rotary White

Brand Name : HOOHA

Model Number : ZY6315

Certification : Compliance with JIS c3005-2000, 4.27.1. A) standard requirements; Japanese cable enterprise standard cable robots "test" standard requirements; Conform to the standard requirements of TUV lane 2 PFG 2577/08.16 appendix C

Place of Origin : China

MOQ : 1

Supply Ability : 10 sets/month

Delivery Time : 30 work days

Packaging Details : wood package

Price : 3000-80000USD/PC

Payment Terms : L/C, T/T, Western Union

color : white

Adopt standard 1 : JIS c3005-2000, 4.27.1. A

Adopt standard 2 : TUV lane 2 PFG 2577/08.16

Test length : about 1.5m

Jig spacing : 50~500mm adjustable

Bending radius r : 100mm, 150mm

Test speed : 50r.p.m

Counter : 0~9999999 times

Contact Now

HOOHA High Precision Wire Testing Equipment ZY6315 Bending Rotary White

Scope of application:

Suitable for high flexible cable test for TUV, VDE and JIS. Will be 1.5 m long samples in accordance with the requirements of the degree of finish is throughout the round hole, and regulations in the adjusted the spacing of the fixture, roulette, 360 ° continuous circular operation, rotate it 200 times, check sample damage, crack, crack and conductor of strand break line rate. Can also be applied to GB/T4909.5-2009 standard of the diameter of the metal wire, do 90 ° reverse bend test positive and negative direction.

Meet the standard:

Compliance with JIS c3005-2000, 4.27.1. A) standard requirements;

Japanese cable enterprise standard cable robots "test" standard requirements;

Conform to the standard requirements of TUV lane 2 PFG 2577/08.16 appendix C

Main parameters:

Test length: about 1.5m

Jig spacing: 50~500mm adjustable

Bending radius r: 100mm, 150mm

Test Angle: 360 ° circumferential continuously running

Test speed: 50r.p.m

Counter: 0~9999999 times

Machine power: 1/2hp

Volume: H650mm D650 W1000 * *

Weight: about 150kg

Power: AC220V, 50Hz, 3A
